Queensland Sheet Metal provide a complete range of structural C and Z Purlins and girts for industrial buildings, garages, verandahs, and carports; in fact anywhere that strong reliable steel framing is required.
Manufactured from quality Galvanised Steel, this is a fully integrated system allowing for flexible design options.
Features

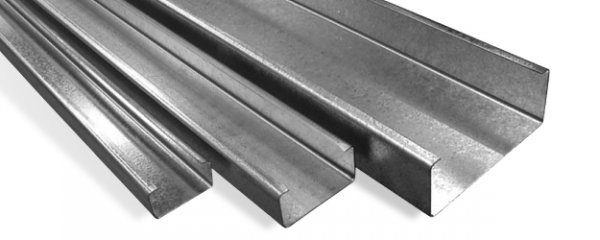

Supplied plain or punched, C & Z purlins are manufactured from high-tensile steel for increased strength, reduced weight, and a long serviceable life.
Queensland Sheet Metal provides an extensive purlin range with eight web heights and six thickness combinations, from 75mm to massive 400mm purlins capable of impressive spans.
Additional Information
Web Depth (mm)
| Thickness (mm) | 75 | 100 | 150 | 200 | 250 | 300 | 350 | 400 |
|---|---|---|---|---|---|---|---|---|
| 1.0mm | x | x | ||||||
| 1.2mm | x | x | x | |||||
| 1.5mm | x | x | x | x | ||||
| 1.9mm | x | x | x | x | ||||
| 2.4mm | x | x | x | x | x | x | x | |
| 3.0mm | x | x | x |
Profiles
Material Properties
| C Section Size | Z Section Size | Yield Stress fy | Ult. Tensile Strength fu |
|---|---|---|---|
| 75-95 | – | 550 | 550 |
| 75-12 | – | 500 | 520 |
| 75-15 | – | 450 | 480 |
| 100-10 | 100-10 | 550 | 550 |
| 100-12 | 100-12 | 500 | 520 |
| 100-15 | 100-15 | 450 | 480 |
| 100-19 | 100-19 | 450 | 480 |
| 100-24 | 100-24 | 450 | 480 |
| 150-10 | 150-10 | 550 | 550 |
| 150-12 | 150-12 | 500 | 520 |
| 150-15 | 150-15 | 450 | 480 |
| 150-19 | 150-19 | 450 | 480 |
| 150-24 | 150-24 | 450 | 480 |
| 200-12 | 200-12 | 500 | 520 |
| 200-15 | 200-15 | 450 | 480 |
| 200-19 | 200-19 | 450 | 480 |
| 200-24 | 200-24 | 450 | 480 |
| 250-15 | 250-15 | 450 | 480 |
| 250-19 | 250-19 | 450 | 480 |
| 250-24 | 250-24 | 450 | 480 |
| 300-24 | 300-24 | 450 | 480 |
| 300-30 | 300-30 | 450 | 480 |
| 350-24 | 350-24 | 450 | 480 |
| 350-30 | 350-30 | 450 | 480 |
| 400-24 | 400-24 | 450 | 480 |
| 400-30 | 400-30 | 450 | 480 |
Dimensions
| t mm | D mm | Z Section | C Section | L mm | Mass kg/m | |
|---|---|---|---|---|---|---|
| E mm | F mm | B mm | ||||
| 0.95 | 75 | – | – | 40 | 10.0 | 1.26 |
| 1.2 | 75 | – | – | 40 | 10.7 | 1.59 |
| 1.5 | 75 | – | – | 40 | 11.4 | 1.97 |
| 1.0 | 102 | 53 | 49 | 51 | 12.5 | 1.77 |
| 1.2 | 102 | 53 | 49 | 51 | 12.5 | 1.77 |
| 1.5 | 102 | 53 | 49 | 51 | 12.5 | 2.10 |
| 1.9 | 102 | 53 | 49 | 51 | 14.5 | 3.29 |
| 2.4 | 102 | 53 | 48 | 51 | 12.0 | 4.13 |
| 1.0 | 152 | 65 | 61 | 64 | 14.5 | 2.42 |
| 1.2 | 152 | 65 | 61 | 64 | 15.0 | 2.89 |
| 1.5 | 152 | 65 | 61 | 64 | 16.0 | 3.58 |
| 1.9 | 152 | 65 | 61 | 64 | 17.0 | 4.51 |
| 2.4 | 152 | 66 | 60 | 64 | 185 | 5.67 |
| 1.2 | 203 | 79 | 74 | 76 | 15.0 | 3.62 |
| 1.5 | 203 | 79 | 74 | 76 | 16.0 | 4.49 |
| 1.9 | 203 | 79 | 73 | 76 | 19.0 | 5.73 |
| 2.4 | 203 | 79 | 74 | 76 | 21.0 | 7.2 |
| 1.5 | 254 | 79 | 74 | 76 | 18.0 | 5.16 |
| 1.9 | 254 | 79 | 74 | 76 | 19.0 | 6.50 |
| 2.4 | 254 | 79 | 73 | 76 | 20.5 | 8.16 |
| 2.4 | 300 | 100 | 93 | 96 | 28.0 | 10.09 |
| 3.0 | 300 | 100 | 93 | 96 | 31.5 | 12.68 |
| 2.4 | 350 | 129 | 121 | 125 | 29.0 | 12.20 |
| 3.0 | 350 | 129 | 121 | 125 | 30.0 | 15.19 |
| 2.4 | 400 | 129 | 121 | 125 | 28.0 | 13.16 |
| 3.0 | 400 | 129 | 121 | 125 | 30.0 | 16.39 |
